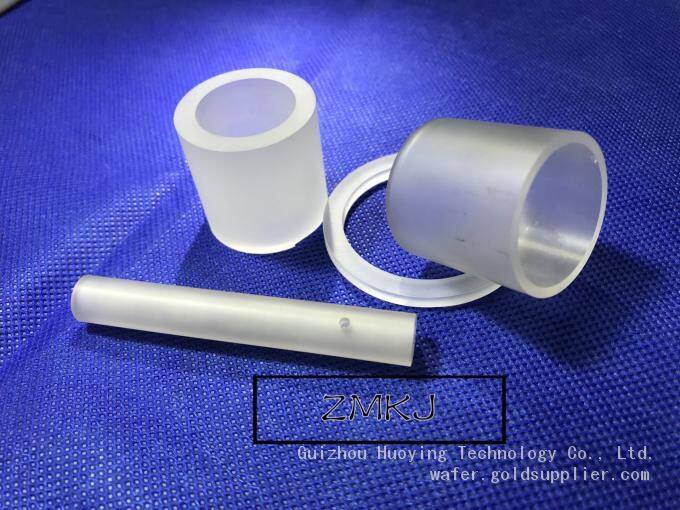

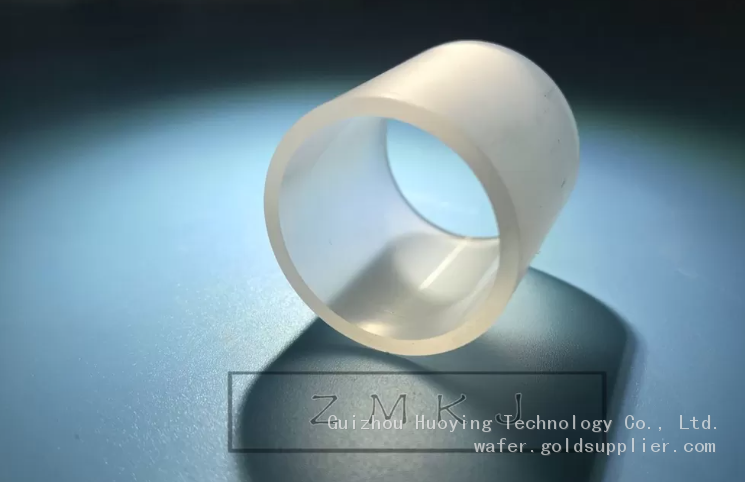

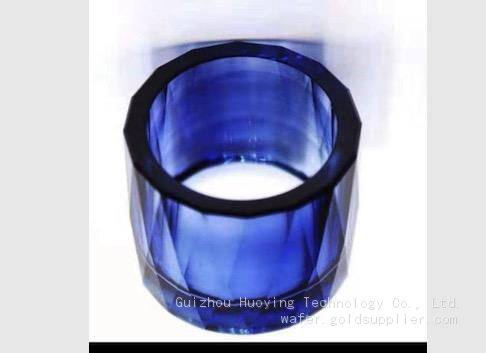

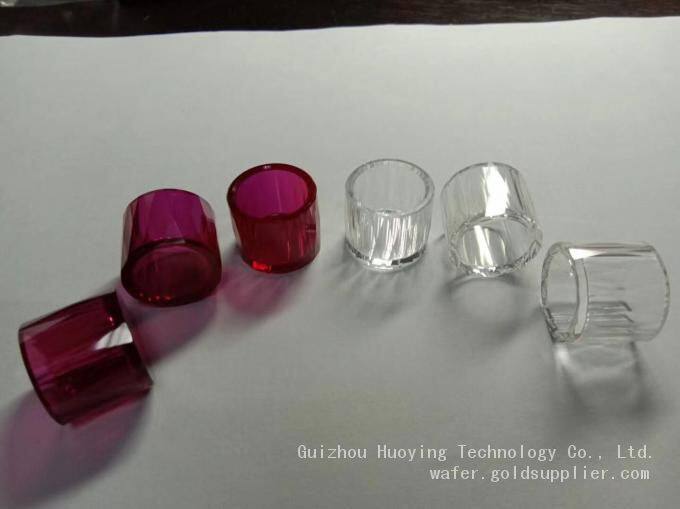

Polished Al2O3 Crystal Sapphire tube, Sapphire Cup Tube Pipe Industrial
sapphire bearing parts with hole, Al2O3 single crystal glass ,sapphire optical glass ingots, sapphire optical rods
Sapphire is aluminium oxide in the purest form with no porosity or grain boundaries, making it theoretically dense.
The combination of favourable chemical, electrical, mechanical,optical, surface, thermal, and durability properties make sapphire a preferred material for high performance system and component designs. For various semiconductor applications,
sapphire is the best choice in comparison with other synthetic single-crystals.
| Product name | industrial sapphire wafer |
| sapphire optical lens chemical formula | AL2O3 |

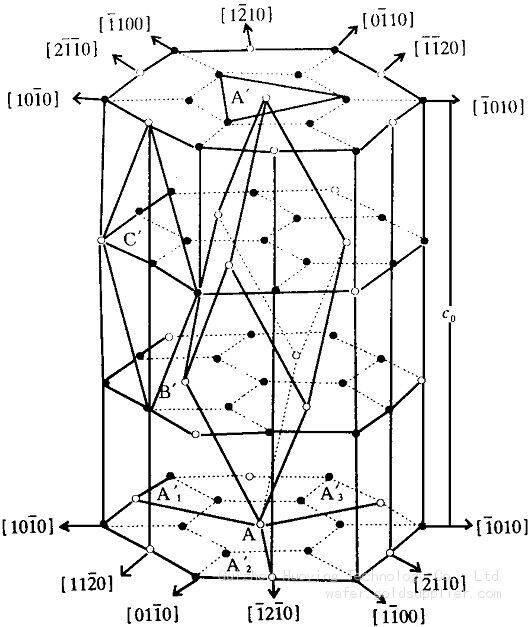

| Crystal structure | Hexagonal |
| Hardness Mohs | 9H |
| Compressvise strength | Gpa 2.0 |
| Density(20℃) | 3.98g/cm |
| Fusion point | 2040℃ |
| Boiling point | 2980℃ |
| Coefficient of Thermal Expansion | α=5.8×10 -6 /K |
| Specific heat | 0.418W.s/g/k |
| Thermal conduction | 25.12W/m/k(@100°C) |
| Optical transmission range | 0.17-5.5μm |
| Transmission(0.3~5um) | 85-88% |
| Refractive index | no=1.768nd |
| ne=1.76nd | |
| dn/dt | 13×10-6/K(@633nm) |
| Permittivity | 11.5(//c), 9.3(⊥c) |
Advantage of Sapphire Glass
2-Transmits Wavelengths Ranging From UV to Mid-Infrared
3-Features Extreme Surface Hardness and Chemical Resistance
Application of Sapphire Glass
LED OPtical element applications mobile camera cover glass
mechanical parts watch and other consumer electronics military applications
Fingerprint recognition allication SOS substrates Artificial jewelry
cooperation and support of new product development and technology appliance
in other semiconductor crystal material products
